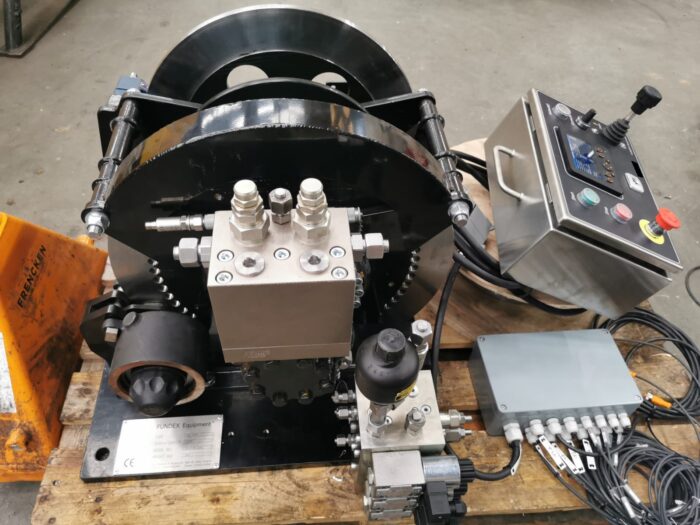

Free fall piling winch
Using a free fall piling winch casings are driven by using a top driven or bottom driven drop weight. With sectional casings bottom drive piling can be beneficial in areas where space and height are limited.
Specifications of the free fall piling winch
| Type | VVL1200 |
|---|---|
| Max. lifting capacity | 1.200 kg |
| Max. length steel cable | 40 mtr, 12 mm thickness |
| Max. drop heigth | 500 - 3.000 mm |
| Max. hoisting speed | 75 m/min |
| Max. working pressure | 150 bar |
| Max. oil flow | 100 l/min |
| Weight | 350 kg |

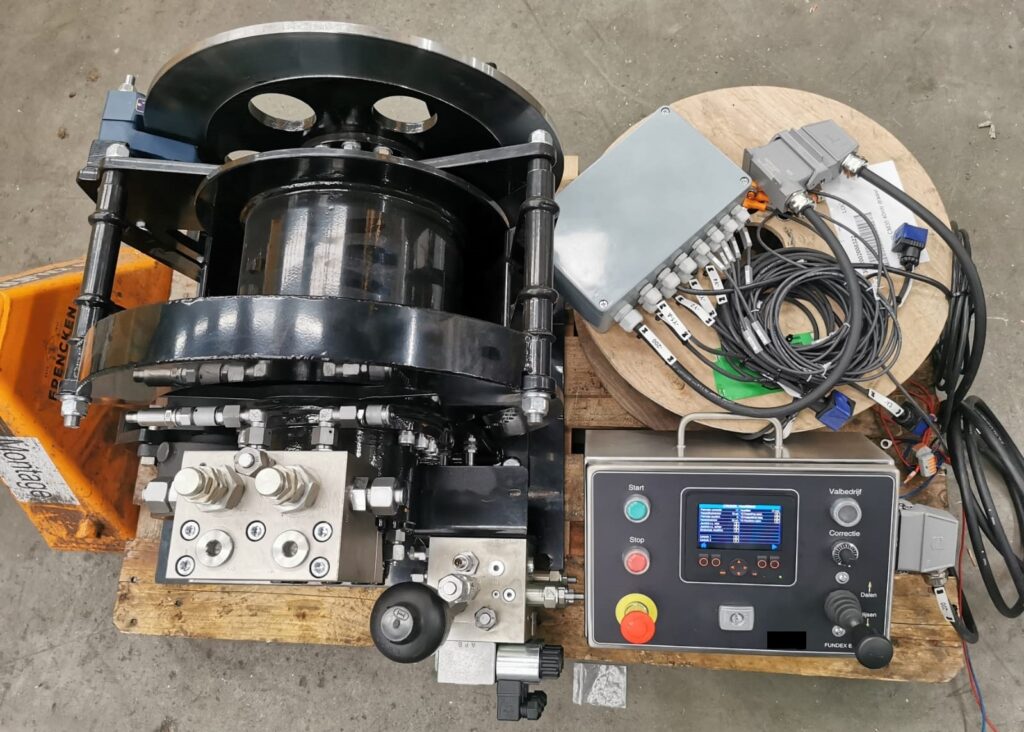

| Including: | Valves and sensors on the winch |
| Control box with PLC and display |
