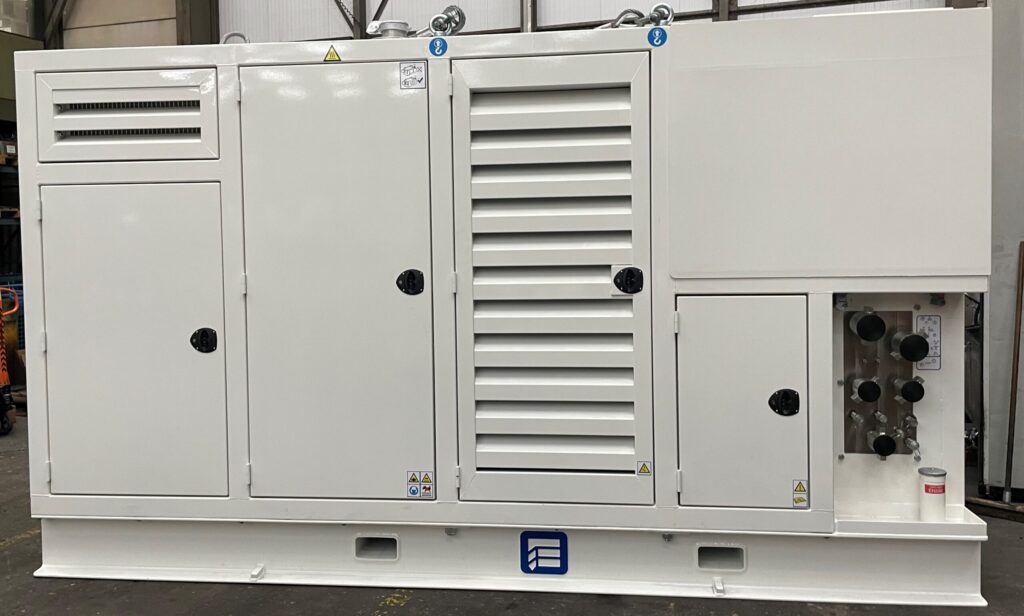

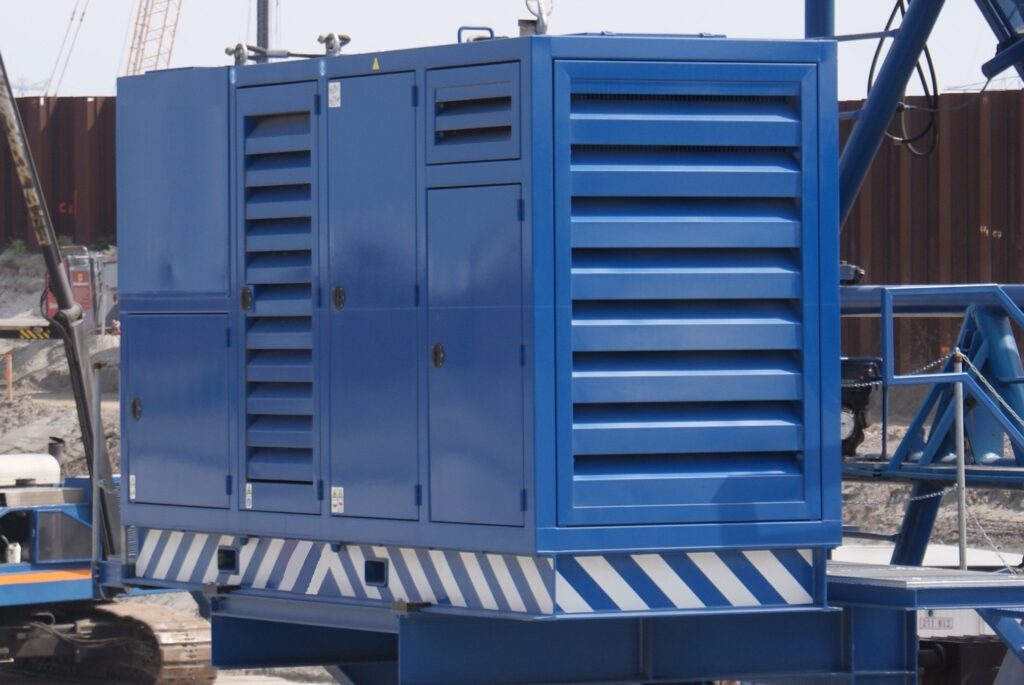

POWER PACK FPP585
The FUNDEX FPP585 multifunctional power pack is suitable to drive many different auxiliary equipment such as rotary heads, hydraulic hammers, vibratory hammers, cutter soil mixers, winches, etc. On the display it’s easy to adjust the most efficient hydraulic flow and pressure per attached equipment. Also this power pack can easily be attached to the Fundex Equipment foundation rig.
| Engine | Volvo Penta TAD1683VE |
|---|---|
| Max. engine power | 585 kW |
| Emission regulation | Stage 5 |
| Max. oil flow | 800 l/min |
| Max. working pressure | 320 bar |
| Hydraulic oil tank capacity | 1.500 ltr |
| Fuel tank capacity | 1.500 ltr |
| Weight | 10 ton |
Additional information FOR THE FUNDEX FPP585
- prepared to use for rotary heads (adjustable flow and torque)
- prepared to use for hydraulic hammers (adjustable till 500 l/min)
- prepared to operate through the control system of a Fundex Equipment rig or by separate control box
- optionally equipped with preheating system
auxiliary equipment suitable to drive with FUNDEX FPP585 power pack
