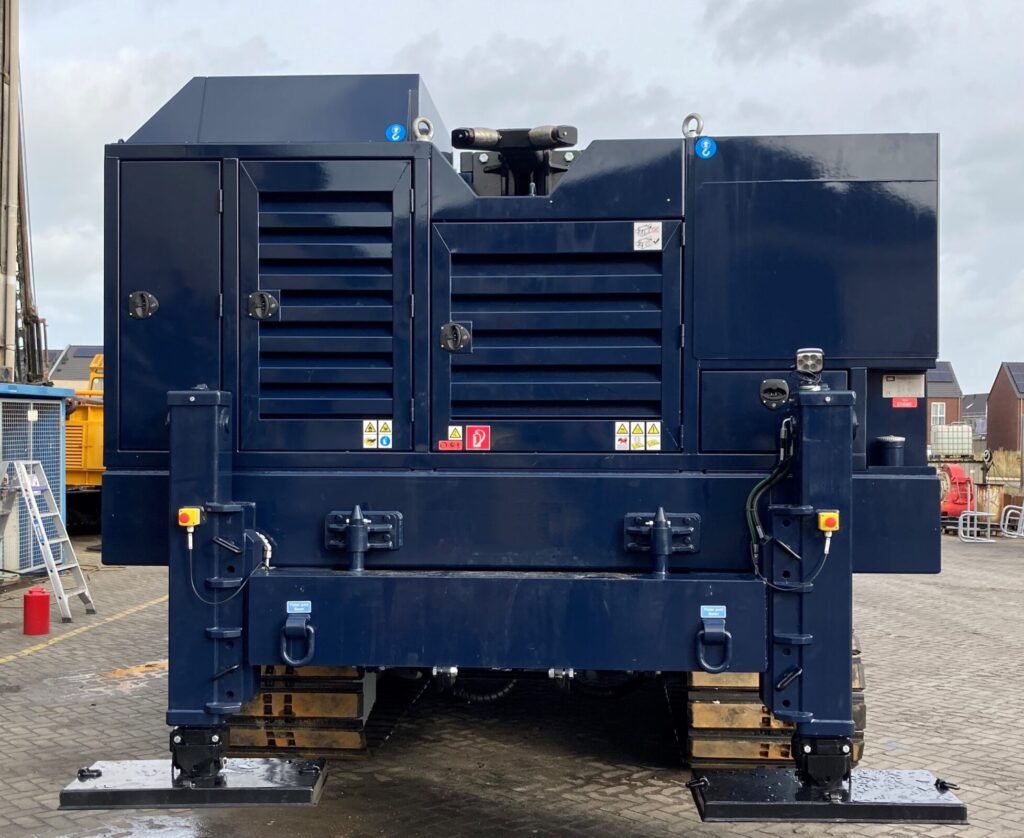

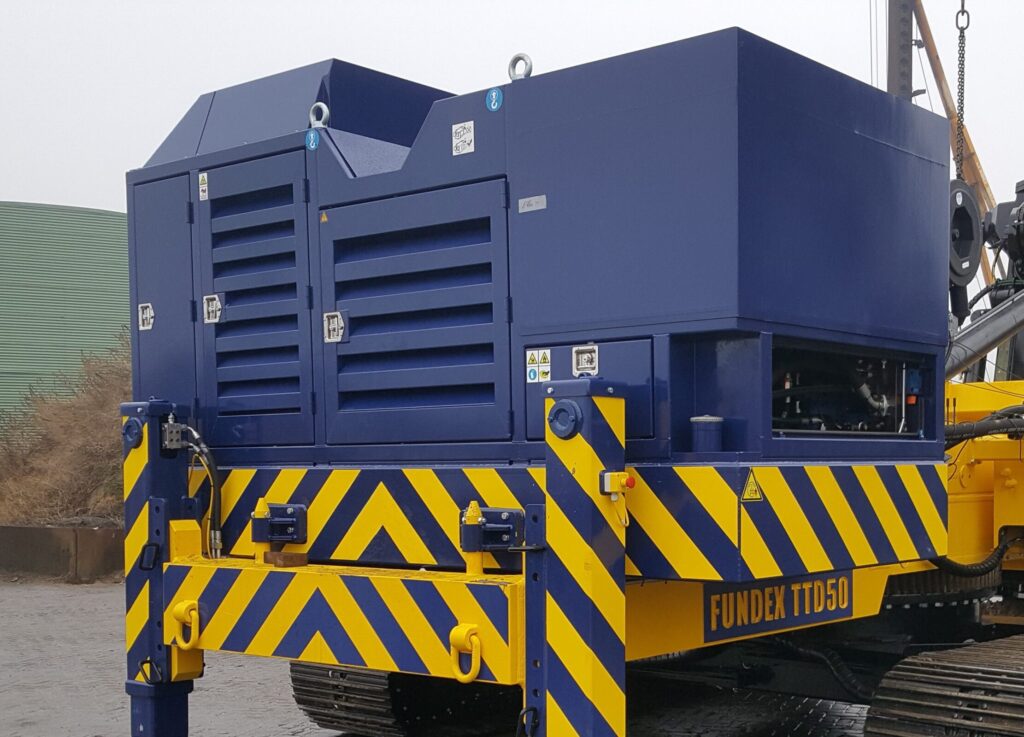

POWER PACK TPP405
Powerful despite its size; that’s the short description of the TPP405 power pack. It’s special designed for the larger compact rigs without an engine in the base carrier. The TPP405 has the possibility to drive the rig and the rotary head. For projects were the power pack cannot stay near the rig ( for example indoor or limited space areas) it can be equipped on a carrier with tracks and reels system.
| Engine | Volvo Penta TAD1685VE |
|---|---|
| Max. engine power | 405 kW |
| Emission regulation | Stage 5 |
| Max. oil flow | 800 l/min |
| Max. working pressure | 320 bar |
| Hydraulic oil tank capacity | 900 ltr |
| Fuel tank capacity | 600 ltr |
| Weight (excl. tracks) | 7 ton |
Additional information and optional items FOR THE FUNDEX TPP405
- prepared to use for rotary head (adjustable flow and torque) with machine functions
- prepared to operate through the control system of a Fundex Equipment rig or by separate control box

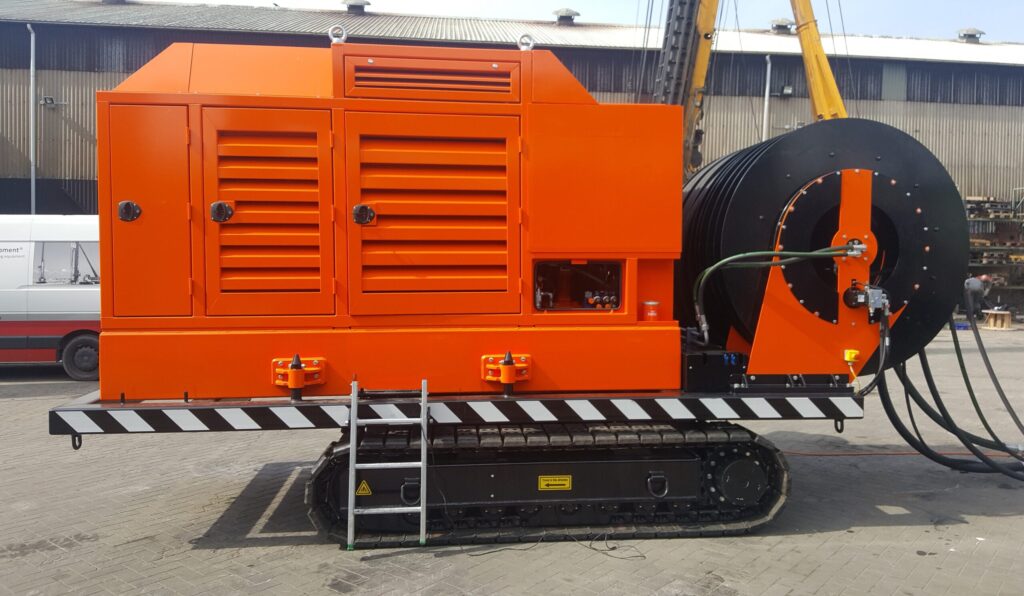

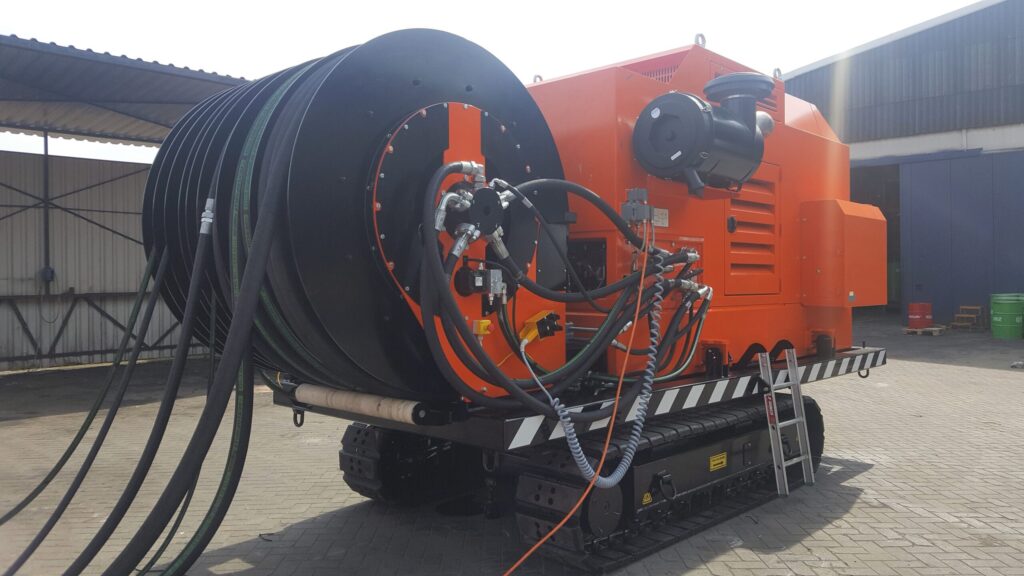

- optionally equipped with tracks and reel system with max. 45 meter hydraulic hoses
- optionally suitable to drive a hydraulic hammer
- optionally equipped with preheating system
auxiliary equipment suitable to drive with FUNDEX FPP405 power pack
