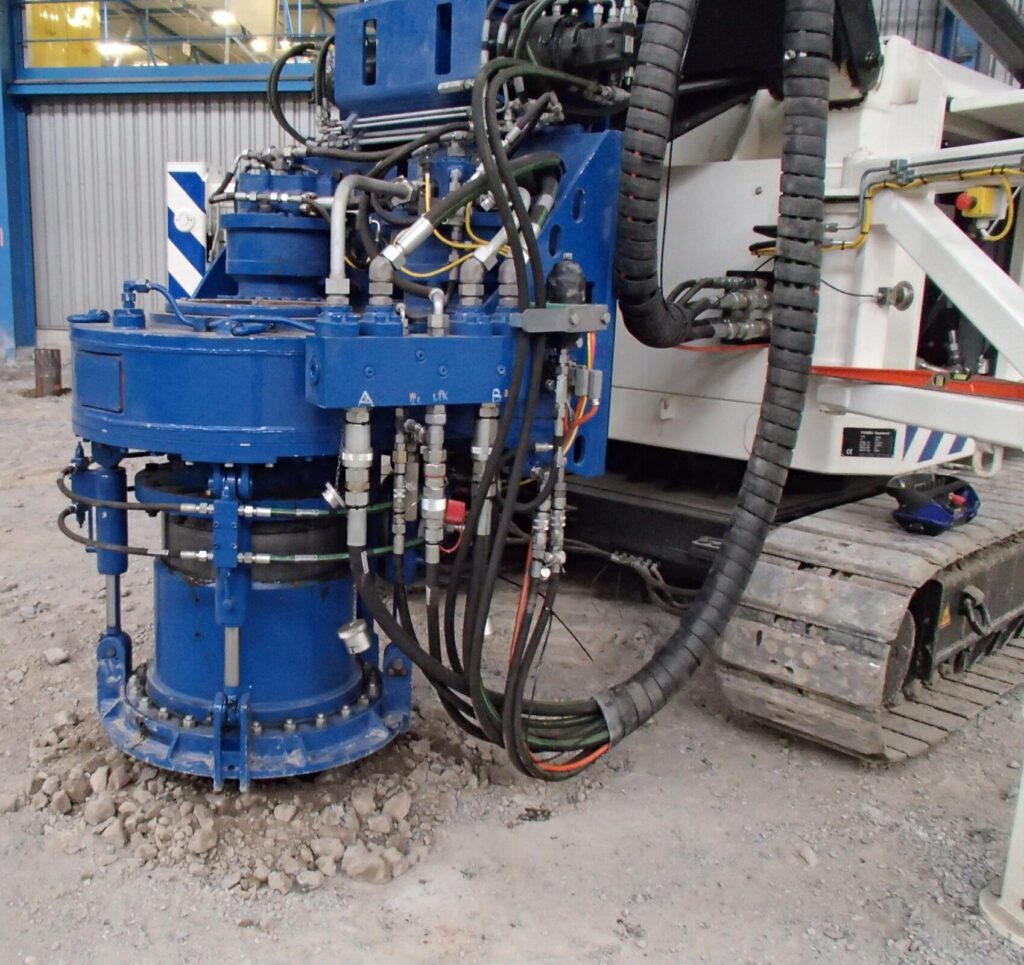

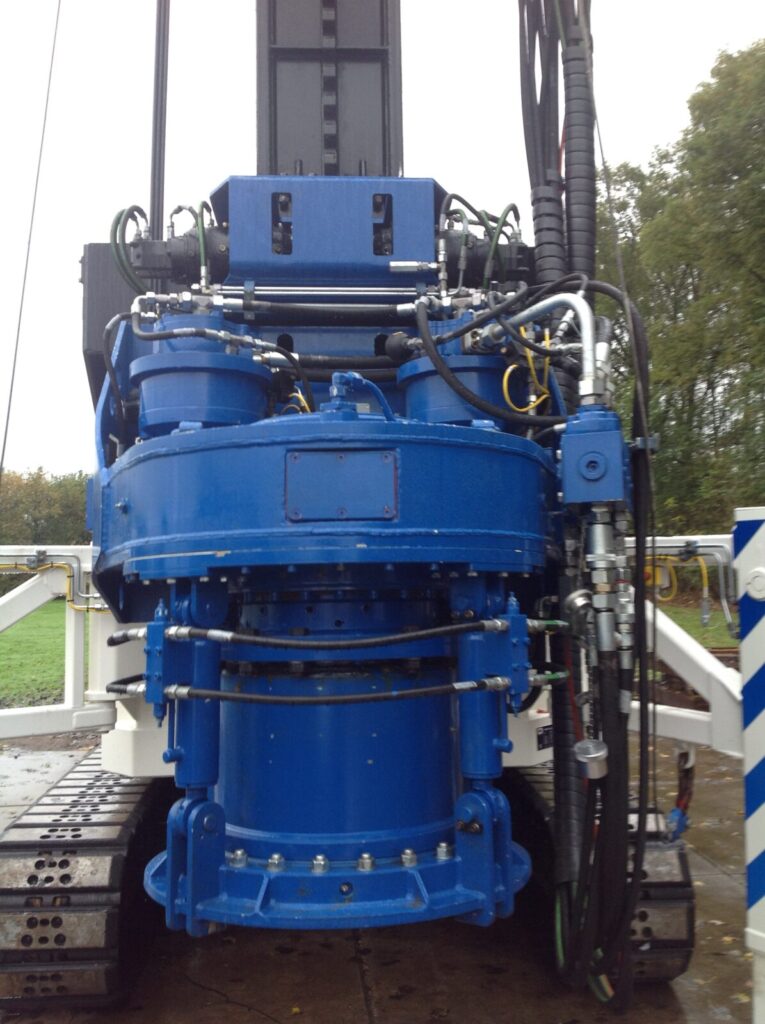

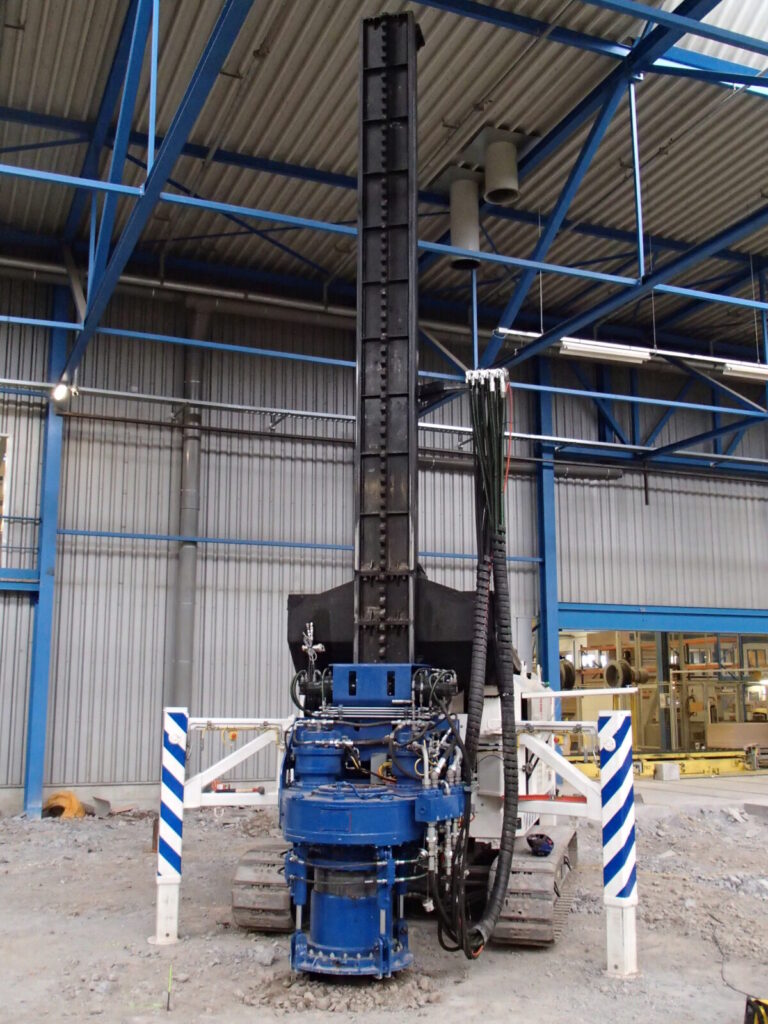

COMPACT ROTARY HEAD CDE12
Installing displacement piles with lost casings till 120kNm max. drill torque can be done with this CDE12 compact rotary head. In combination with the special VCS clamping system it can install sectional casings in low head room areas. The rack and pinion system creates 7 ton pull down force in combination with a FUNDEX CD20D rig.
Specifications of the FUNDEX CDE12 compact rotary head
| Max. torque | 120 kNm |
|---|---|
| Diameter casing | 219 - 324 mm |
| Gear shifting | automatic or manual |
| Max. oil flow | 240 l/min |
| Max. torque / rotation speed (i.c.w. CD20D) | 120 kNm / 8 rpm |
| 90 kNm / 12 rpm | |
| 60 kNm / 16 rpm | |
| Max. pull-up | 7 ton |
| Max. pull-down | 7 ton |
| Weight | 3.500 kg |
