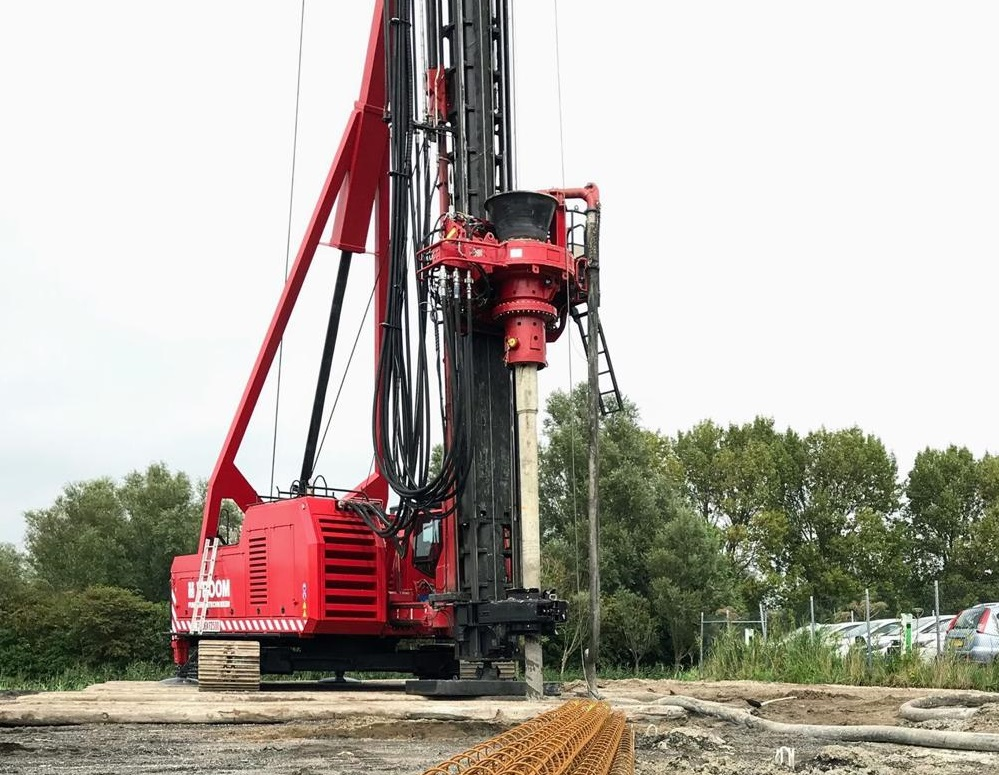

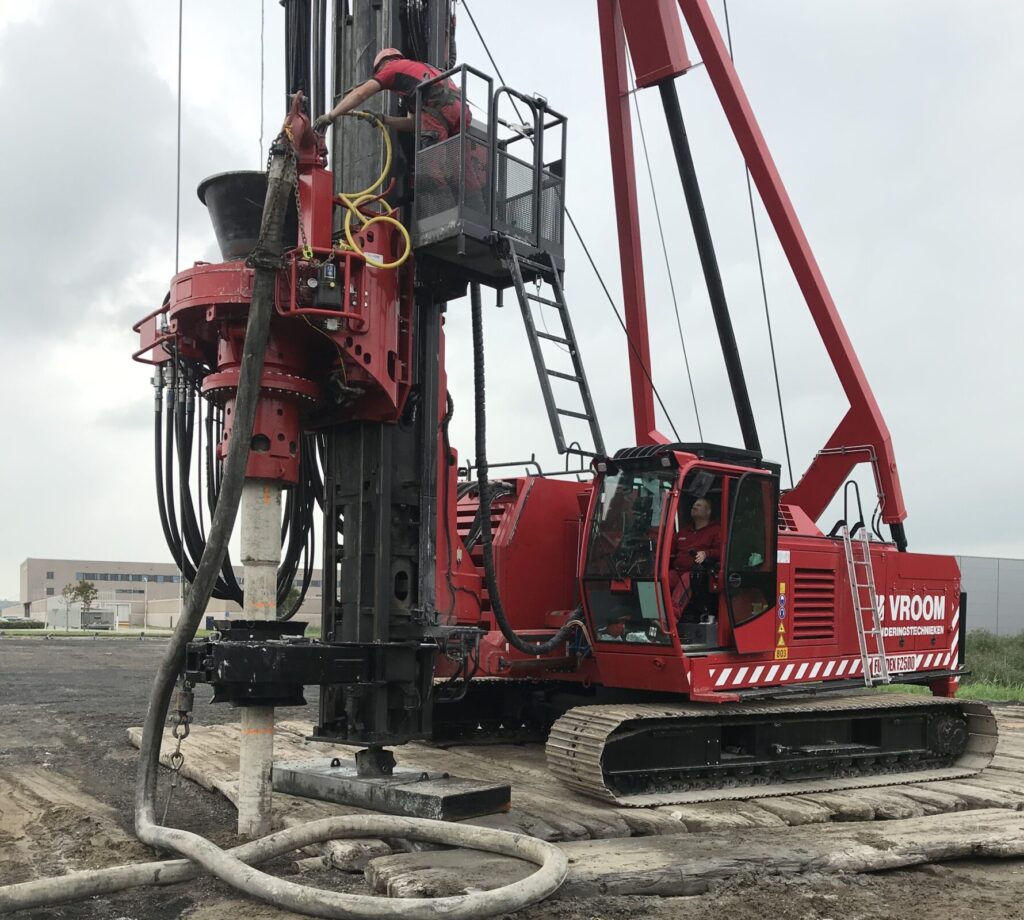

ROTARY HEAD FDE27
Despite the compact and robust design this rotary head is the best suitable option for the midrange rig. The high torque in combination with a high pull up/down force ensure fast installation of CFA and displacement piles. The various application kits offers the possibility for a wide range of different installation techniques.
Specifications of the FUNDEX FDE27
| Max. torque | 270 kNm |
|---|---|
| Gear shifting | automatic or manual |
| Max. oil flow | 800 l/min |
| 1st gear | 270 kNm / 16 rpm |
| 2nd gear | 200 kNm / 22 rpm |
| 3rd gear | 135 kNm / 33 rpm |
| Max. pull-up | 80 ton |
| Max. pull-down | 20 ton |
| Weight | 6.500 kg |
OPTIONAL ITEMS FOR THE FUNDEX FDE27
- FUNDEX CCS clamping system for casing Ø 273 - 457mm
- FUNDEX rotary head CFA kit for closed concrete connection
- Kelly extension
