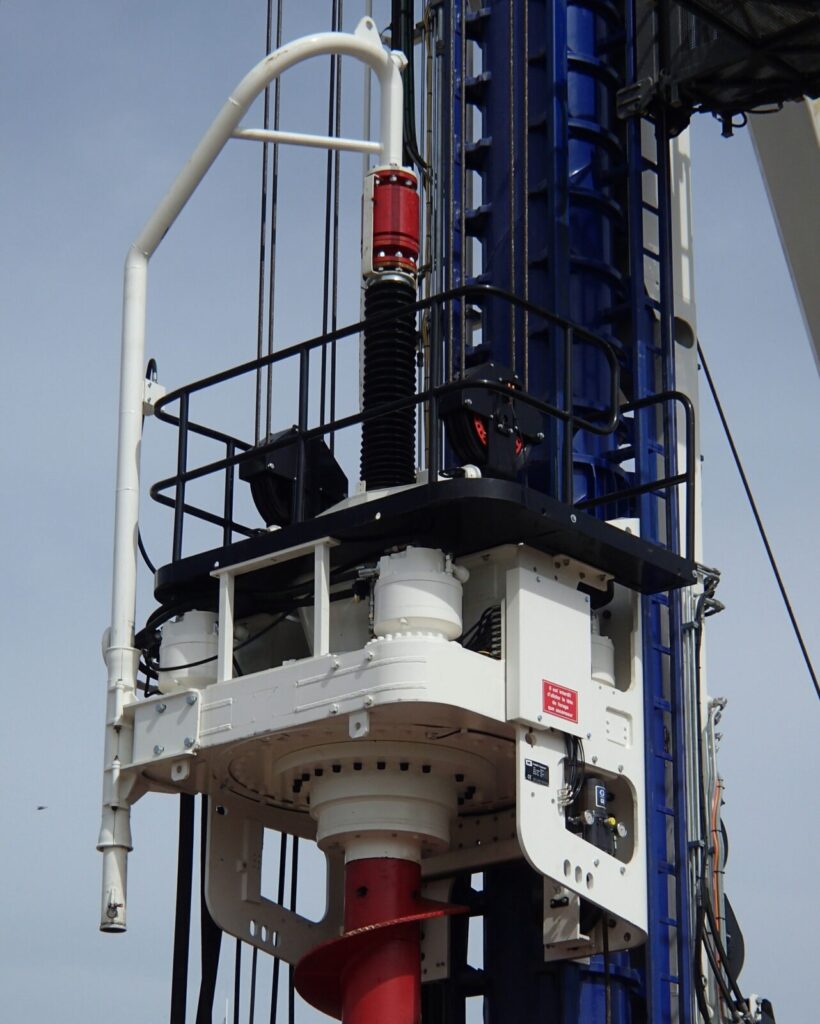

ROTARY HEAD FDE50HS
The FUNDEX FDE50HS rotary head is the best of the best in his class and often tried to be copied but never beaten. It’s the combination of high torque and reliability for the toughest projects with CFA and displacement piles. The various application kits offers the possibility for a wide range of different installation techniques.
Specifications of the FUNDEX FDE50HS
| Max. torque | 500 kNm |
|---|---|
| Max. oil flow | 800 l/min |
| Gear shifting | automatic or manual |
| 1st gear | 500 kNm / 8 rpm |
| 2nd gear | 350 kNm / 12 rpm |
| 3rd gear | 200 kNm / 21 rpm |
| 4th gear | 110 kNm / 27 rpm |
| Max. pull-up | 100 ton |
| Max. pull-down | 50 ton |
| Weight | 8.500 kg |
Optional items for the FUNDEX FDE50HS
- FUNDEX FCSD clamping system for casing Ø 323 - 711mm
- FUNDEX rotary head CFA kit
- Kelly extension
applications suitable for the FUNDEX FDE50HS
More info about all our applications
-
Soil displacement drilling with FDE50HS
- Max. casing diameter 914mm
-
CFA drilling with FDE50HS
- Max. auger diameter 1.500mm
