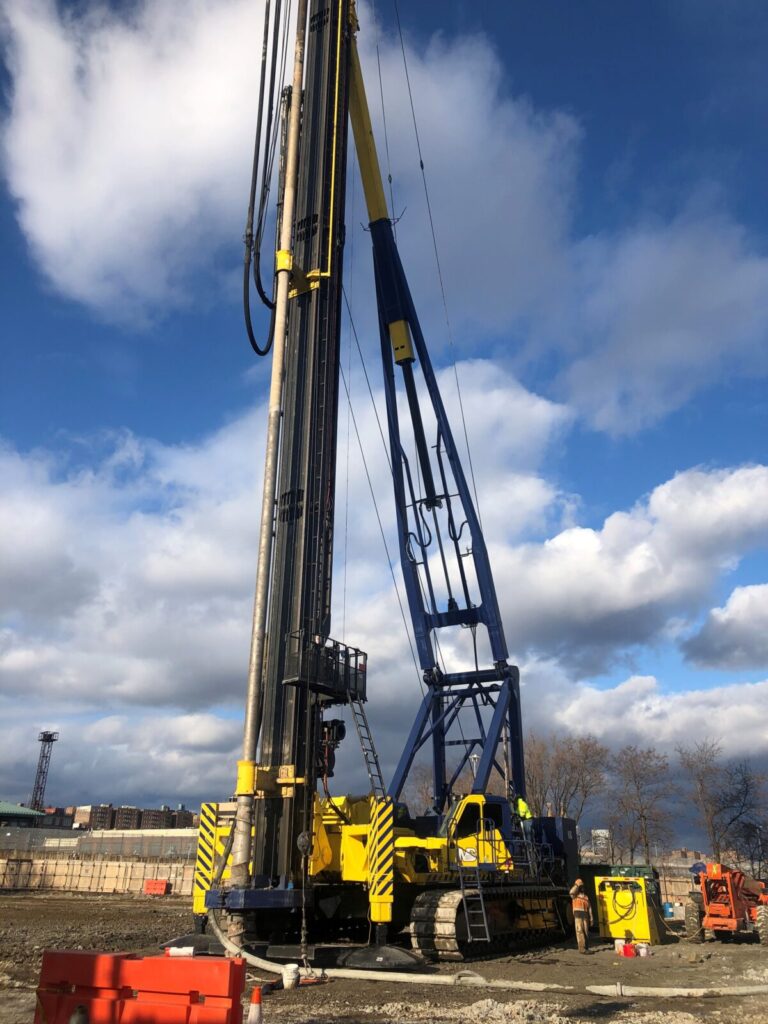

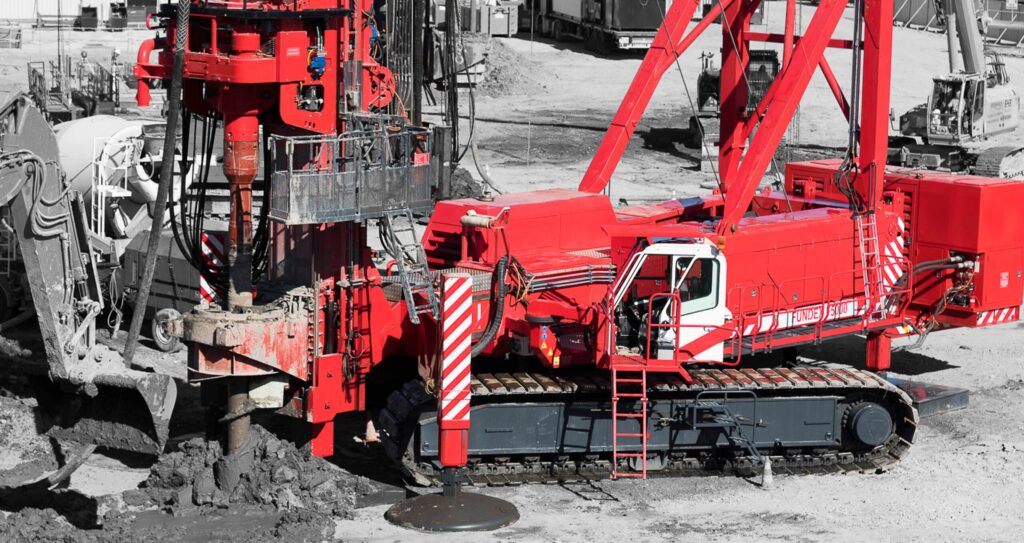

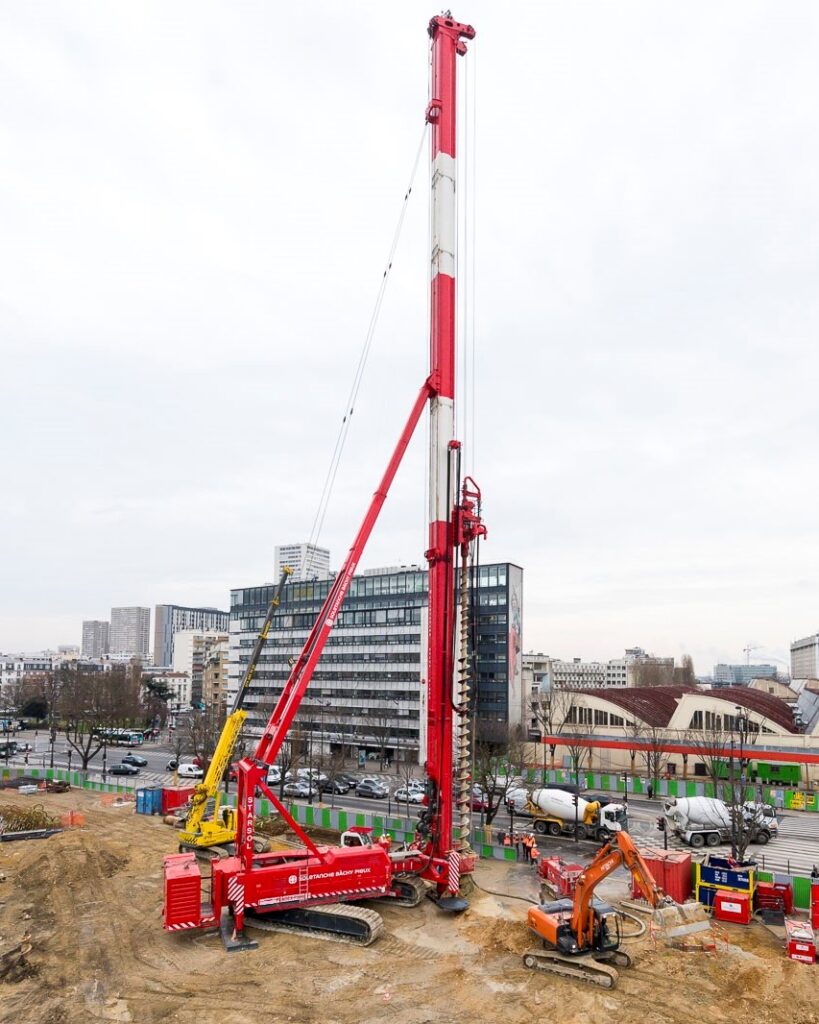

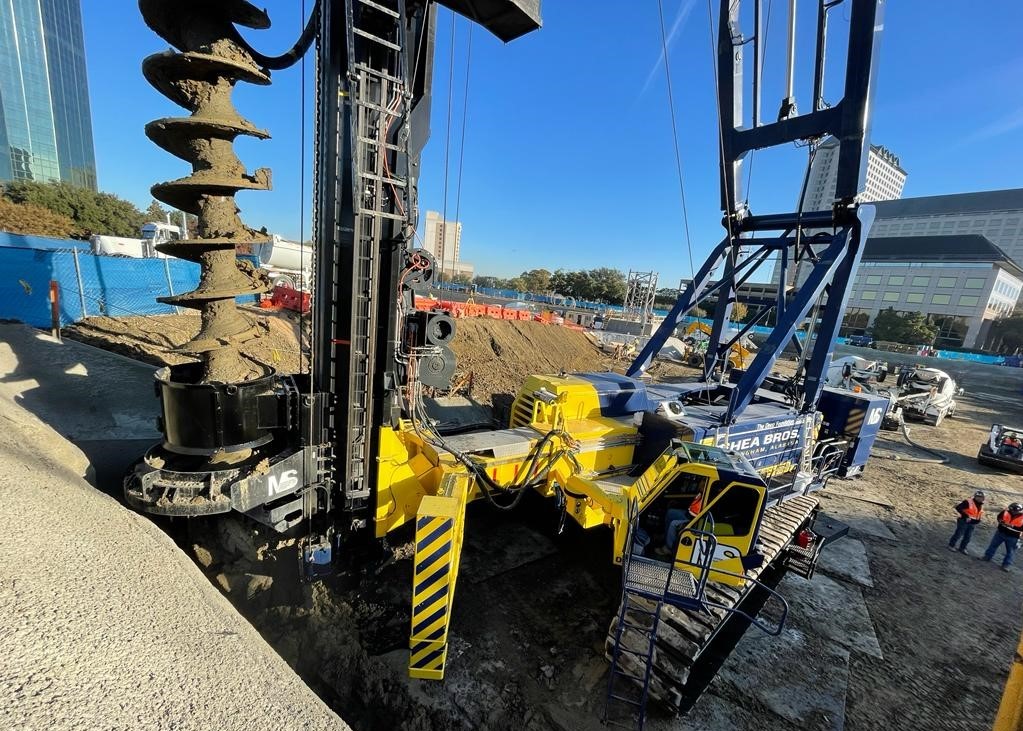

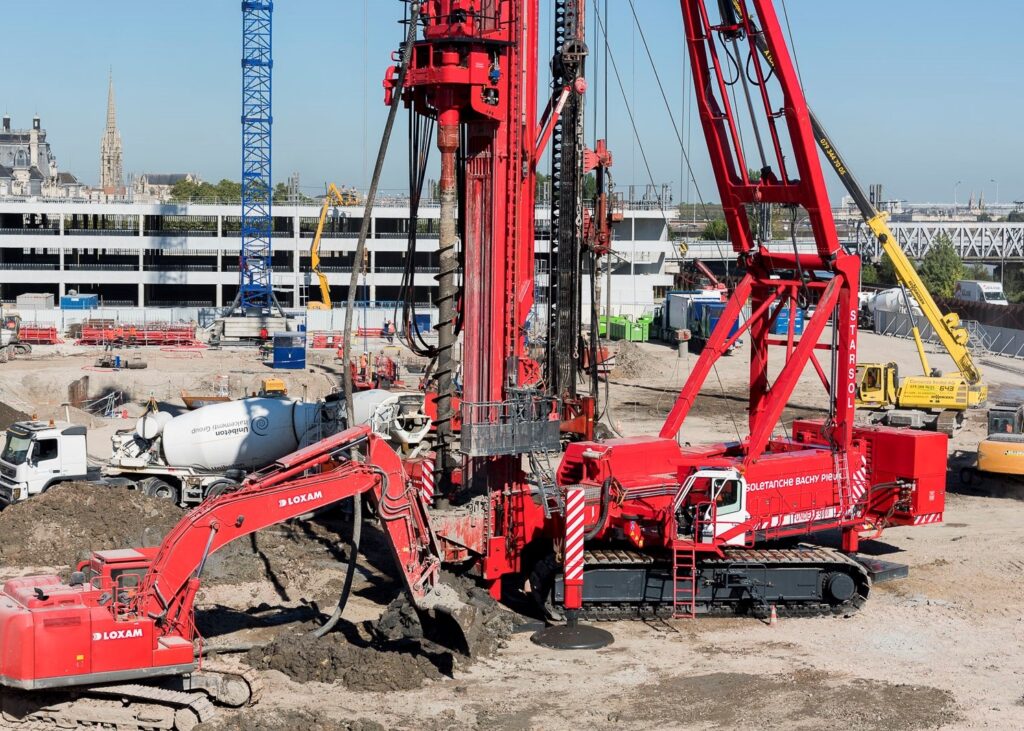

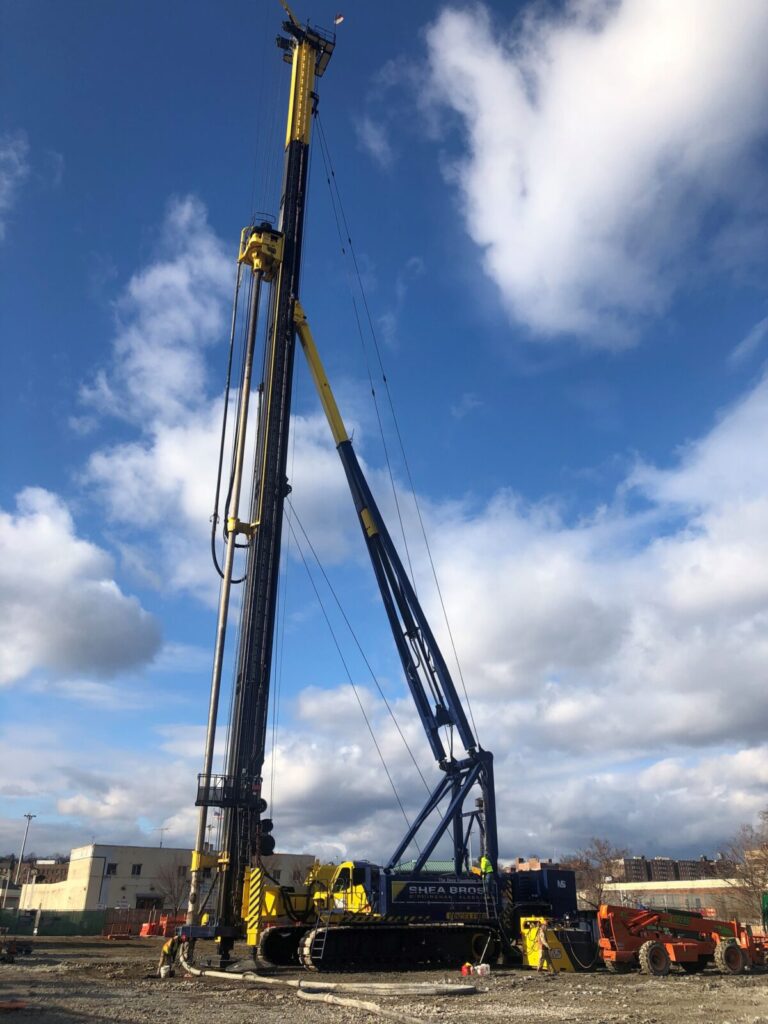

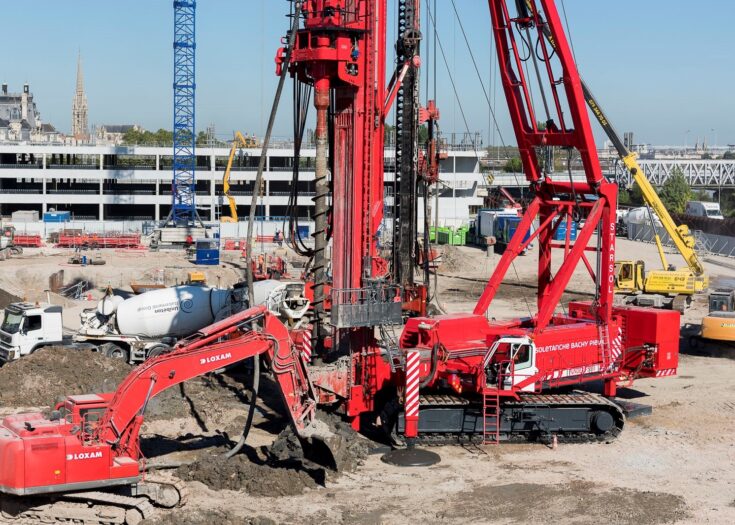

FUNDEX F5600
The FUNDEX F5600 is the largest model in the range of Fundex Equipment multifunctional foundation rigs. The F5600 can be used for both drilling and pile driving techniques, double drilling, soil mixing, sheet pile push pull system and vibratory hammers.
SPECIFICATIONS OF THE FUNDEX F5600
| Max. leader length | 56 mtr |
|---|---|
| Max. drilling depth | 50 mtr |
| Max. drilling diameter | 1.500 mm |
| Max. drilling torque | 500 kNm |
| Max. pull-up force | 200 T |
| Max. pull-down force | 50 T |
| Engine | 405 & 585 kW |

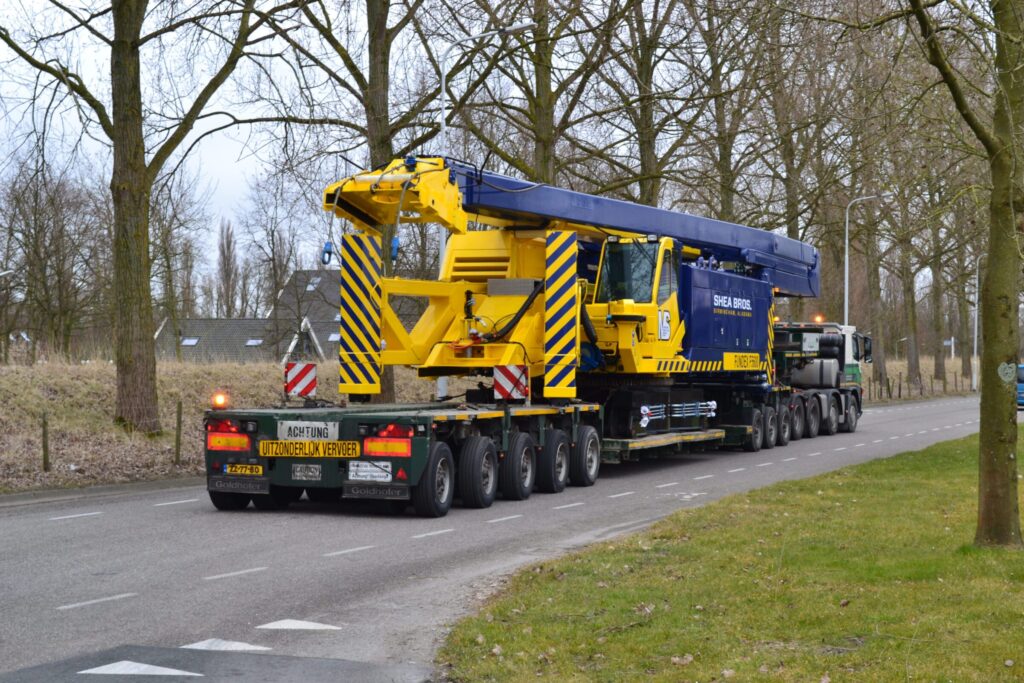

| Transport weight | 80 - 90 T |
ADVANTAGES OF THE FUNDEX F5600
- self-erecting
- high stability thanks to both front and rear supports as well as a low centre of gravity
- additional power pack with a 585 kW powerful Volvo engine
- torque of 500 kNm along the entire leader length
- the ergonomic cabin with modern control and monitoring system can be swiveled out which provides an optimum view on the job
